grid1.f File Reference

Basic methods of the data-type GRIDMAN_GRID, see gridman.f. More...

Go to the source code of this file.

Functions/Subroutines
subroutine	gridman_grid_allocate (GRID, TYPE, NEDGES, NPOINTS, NCELLS, IERR, NEDGEINDEX, NCELLINDEX)
	Allocate GRIDMAN_GRID object. More...
subroutine	gridman_grid_deallocate (GRID, IERR)
	Deallocate grid object. More...
subroutine	gridman_grid_check (GRID, RES, IERR)
	Check consistency of the grid data. More...
subroutine	gridman_grid_unitwrite (GRID, IOUT, IERR)
	Save grid object in a file defined by the unit index. More...
subroutine	gridman_grid_filewrite (GRID, FNAME, IERR)
	Save grid object in a file defined by the file name. More...
subroutine	gridman_grid_unitread (GRID, IIN, IERR)
	Read grid object from file defined by unit number. More...
subroutine	gridman_grid_fileread (GRID, FNAME, IERR)
	Read grid object from file defined by file name. More...
subroutine	gridman_grid_copy (GRID2, GRID1, IERR)
	Create a copy of the grid object. More...
subroutine	gridman_grid_compare (GRID1, GRID2, RES, IERR)
	Compare two grid objects. More...
subroutine	gridman_grid_take (GRID2, GRID1, IERR)
	Take data from one grid object to another. More...
subroutine	gridman_grid_count (GRID, NCOUNT, IERR)
	Return the number of cells plus the number of edges not belonging to any cell. More...
subroutine	gridman_grid_metadata_text (GRID, TEXT, NT, IERR)
	Print metadata into text array. More...
subroutine	gridman_grid_metadata_unit (GRID, IUNIT, IERR)
	Print metadata into unit - shell for GRIDMAN_GRID_METADATA_TEXT. More...

Detailed Description

Basic methods of the data-type GRIDMAN_GRID, see gridman.f.

Definition in file grid1.f.

Function/Subroutine Documentation

subroutine gridman_grid_allocate	(	type(gridman_grid)	GRID,
		integer, intent(in)	TYPE,
		integer(gridman_sp), intent(in)	NEDGES,
		integer(gridman_sp), intent(in)	NPOINTS,
		integer(gridman_sp), intent(in)	NCELLS,
		integer, intent(out)	IERR,
		integer, intent(in), optional	NEDGEINDEX,
		integer, intent(in), optional	NCELLINDEX
	)

Allocate GRIDMAN_GRID object.

WARNING: if GRID exists it will be overwritten!

Parameters

	grid	Resulting grid object
[in]	type	Grid type
[in]	ncells	Number of cells
[in]	nedges	Number of edges
[in]	npoints	Number of points
[out]	ierr	Error code
[in]	nedgeindex	Number of groups of indices for edges

If NEDGEINDEX<=0 then egde indices are not allocated

Parameters

[in]

ncellindex

Number of groups of indices for cells

If NEDGEINDEX<=0 then cell indices are not allocated

Definition at line 30 of file grid1.f.

References gridman::gridman_dbg, gridman_grid_deallocate(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_addsurf2grid_2d(), gridman_addsurf2grid_3d(), gridman_carre2grid(), gridman_grid2d_cut(), gridman_grid2d_merge(), gridman_grid2d_triang(), gridman_grid_cells(), gridman_grid_combine(), gridman_grid_copy(), gridman_grid_eliminate_cells(), gridman_grid_eliminate_edges(), gridman_grid_points(), gridman_grid_unitread(), gridman_template2grid(), and gridman_tria2grid().

Here is the call graph for this function:

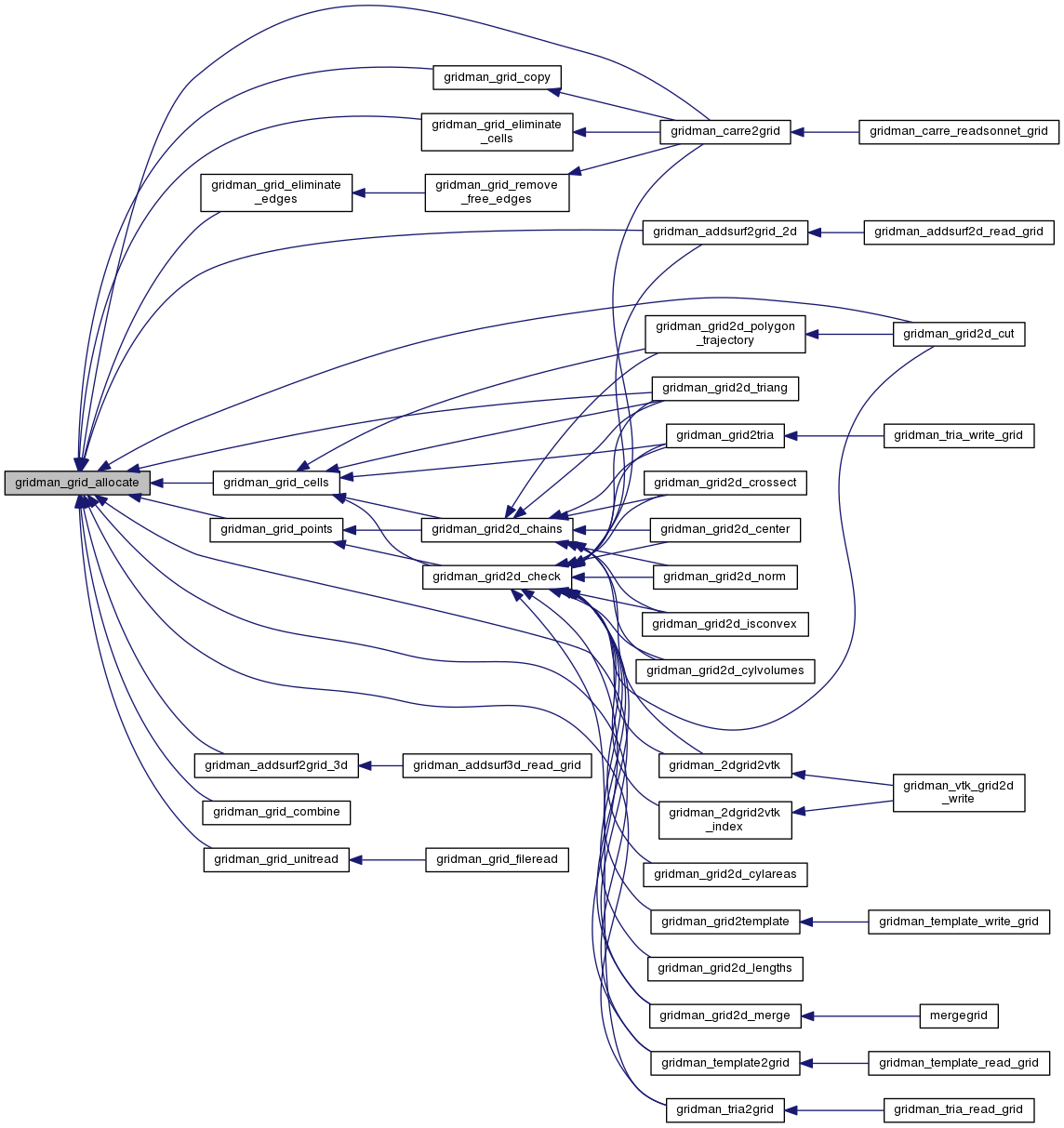

Here is the caller graph for this function:

subroutine gridman_grid_deallocate	(	type(gridman_grid)	GRID,
		integer, intent(out)	IERR
	)

Deallocate grid object.

Parameters

	grid	Grid object to be deallocated
[out]	ierr	Error code

Definition at line 184 of file grid1.f.

References gridman::gridman_dbg, gridman_index_deallocate(), and gridman::gridman_unit.

Referenced by check_polygon(), gridman_addsurf2grid_2d(), gridman_addsurf2grid_3d(), gridman_carre2grid(), gridman_carre_read30_grid(), gridman_carre_readsonnet_grid(), gridman_grid_allocate(), gridman_grid_combine(), gridman_grid_copy(), gridman_grid_eliminate_edges(), gridman_grid_unitread(), gridman_template2grid(), and gridman_tria2grid().

Here is the call graph for this function:

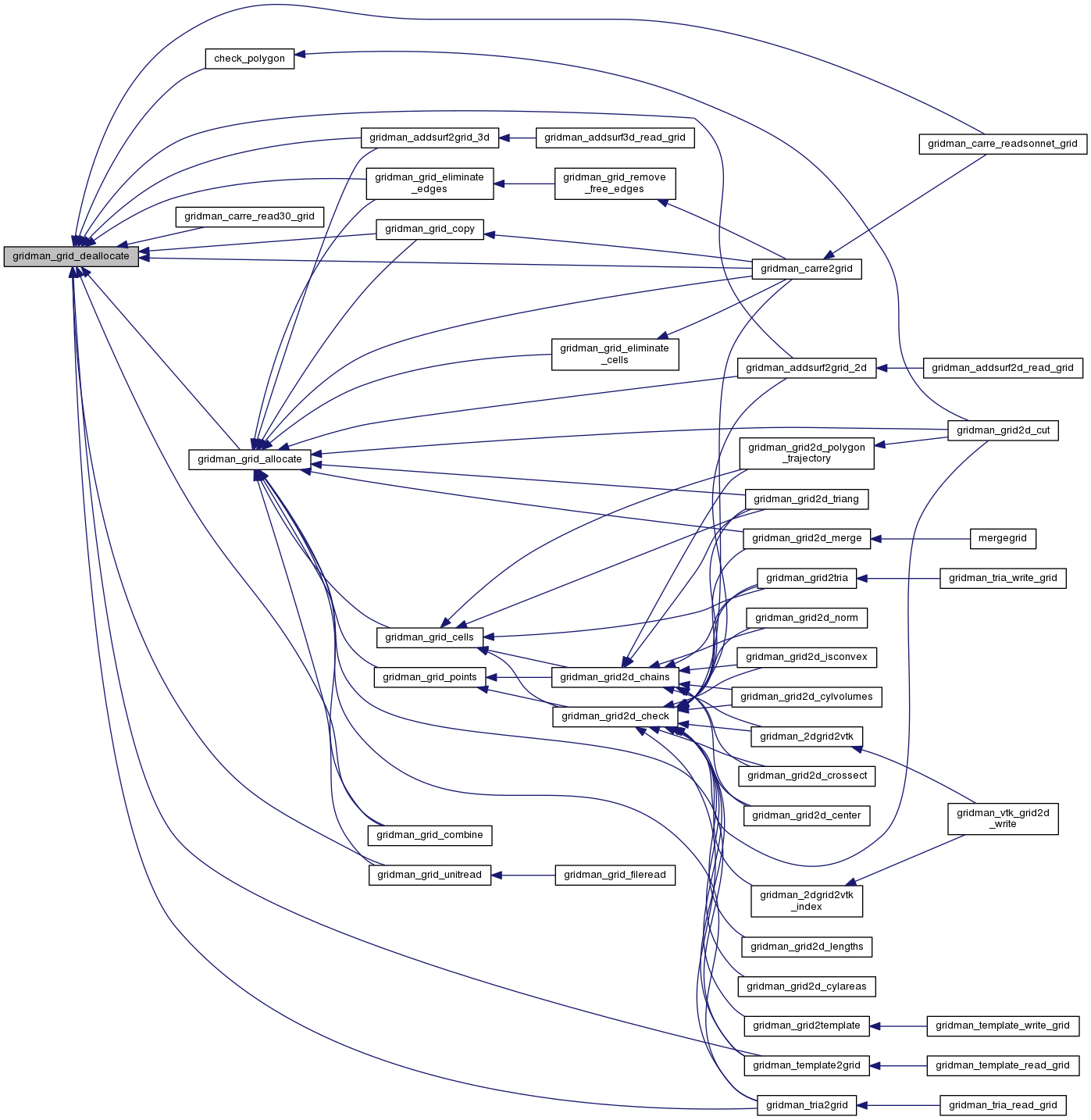

Here is the caller graph for this function:

subroutine gridman_grid_check	(	type(gridman_grid)	GRID,
		integer, intent(out)	RES,
		integer, intent(out)	IERR
	)

Check consistency of the grid data.

• RES=0: the grid is correct
• RES=1: grid is not allocated
• RES=2: dimensions are incorrect
• RES=3: wrong array size
• RES=4: cell index is out of bounds
• RES=5: duplicate cell index for an edge
• RES=6: NCELLS and CELLS do not match
• RES=7: index of point is out of bounds
• RES=8: incorrect unit scaling factor
• RES=9: incorrect edge indices
• RES=10: incorrect cell indices

Parameters

	grid	Grid object to be checked
[out]	res	Code of the result
[out]	ierr	Error code

Definition at line 289 of file grid1.f.

References gridman_index_check(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_3dgrid2vtk_index(), gridman_addsurf2grid_3d(), gridman_grid2d_check(), gridman_grid2d_triang(), gridman_grid_cells(), gridman_grid_combine(), gridman_grid_compare(), gridman_grid_copy(), gridman_grid_count(), gridman_grid_eliminate_cells(), gridman_grid_eliminate_edges(), gridman_grid_points(), gridman_grid_take(), gridman_grid_unitread(), and gridman_grid_unitwrite().

Here is the call graph for this function:

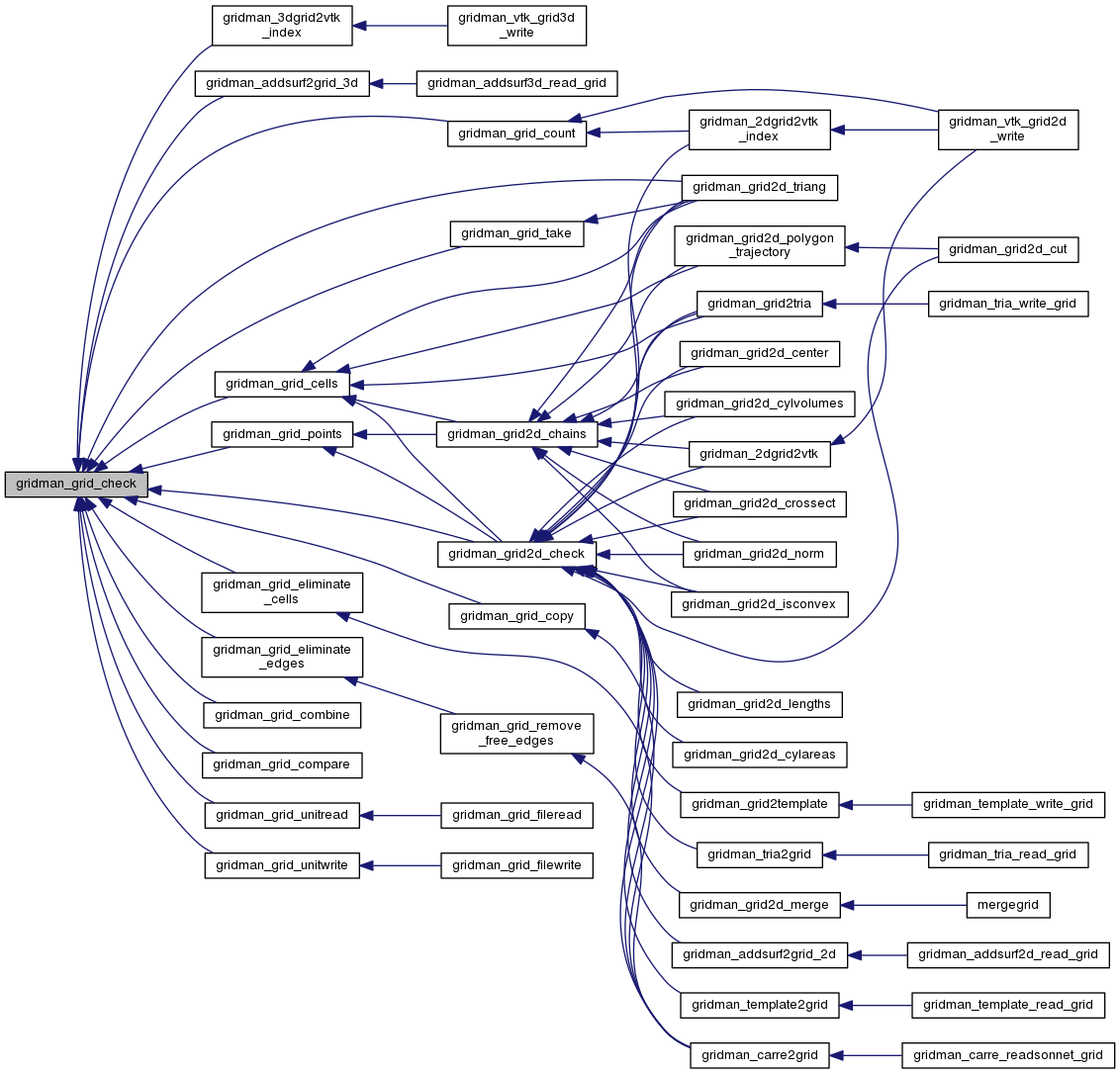

Here is the caller graph for this function:

subroutine gridman_grid_unitwrite	(	type(gridman_grid)	GRID,
		integer, intent(in)	IOUT,
		integer, intent(out)	IERR
	)

Save grid object in a file defined by the unit index.

GRIDMAN_GRID_UNITWRITE and GRIDMAN_GRID_FILEWRITE are combined in the interface GRIDMAN_GRID_WRITE

Parameters

	grid	Grid object to be saved
[in]	iout	Index of the output unit
[out]	ierr	Error code

At the moment only ASCII format is supported

Todo:

HDF5 format has shell be added in the future

Definition at line 541 of file grid1.f.

References gridman_grid_check(), gridman_index_write(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid_filewrite().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_filewrite	(	type(gridman_grid)	GRID,
		character(*)	FNAME,
		integer, intent(out)	IERR
	)

Save grid object in a file defined by the file name.

This subroutine is a shell for GRIDMAN_GRID_UNITWRITE

GRIDMAN_GRID_UNITWRITE and GRIDMAN_GRID_FILEWRITE are combined in the interface GRIDMAN_GRID_WRITE

Parameters

	grid	Grid object to be saved
	fname	Name of the output file
[out]	ierr	Error code

Definition at line 705 of file grid1.f.

References gridman::gridman_dbg, gridman_grid_unitwrite(), and gridman::gridman_unit.

Here is the call graph for this function:

subroutine gridman_grid_unitread	(	type(gridman_grid)	GRID,
		integer, intent(in)	IIN,
		integer, intent(out)	IERR
	)

Read grid object from file defined by unit number.

WARNING: Object which already exists will be overwritten!

GRIDMAN_GRID_UNITREAD and GRIDMAN_GRID_FILEREAD are Combined in the interafce GRIDMAN_GRID_READ

Parameters

	grid	Resulting grid object
[in]	iin	Index of the input unit
[out]	ierr	Error code

At the moment only ASCII format is supported

Todo:

HDF5 format has shell be added in the future

Definition at line 767 of file grid1.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_grid_deallocate(), gridman_index_read(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid_fileread().

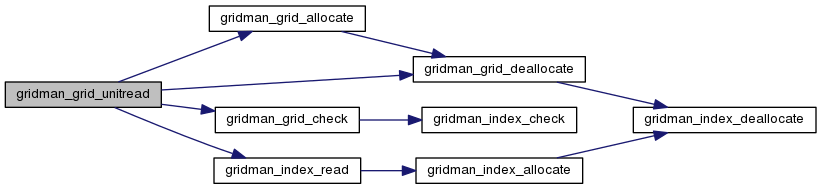

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_fileread	(	type(gridman_grid)	GRID,
		character(*), intent(in)	FNAME,
		integer, intent(out)	IERR
	)

Read grid object from file defined by file name.

This subroutine is a shell for GRIDMAN_GRID_UNITREAD

WARNING: Object which already exists will be overwritten!

GRIDMAN_GRID_UNITREAD and GRIDMAN_GRID_FILEREAD are Combined in the interafce GRIDMAN_GRID_READ

Parameters

	grid	Resulting grid object
[in]	fname	Name of the output file
[out]	ierr	Error code

Definition at line 931 of file grid1.f.

References gridman::gridman_dbg, gridman_grid_unitread(), and gridman::gridman_unit.

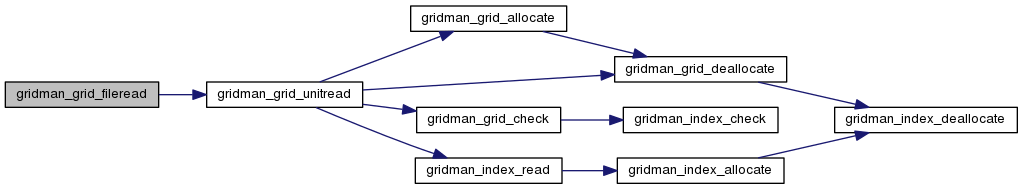

Here is the call graph for this function:

subroutine gridman_grid_copy	(	type(gridman_grid)	GRID2,
		type(gridman_grid)	GRID1,
		integer, intent(out)	IERR
	)

Create a copy of the grid object.

WARNING: If GRID2 already exists it will be overwritten!

Parameters

	grid1	Original object
	grid2	Copy to be created
[out]	ierr	Error code

Definition at line 981 of file grid1.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_grid_deallocate(), gridman_index_copy(), and gridman::gridman_unit.

Referenced by gridman_carre2grid().

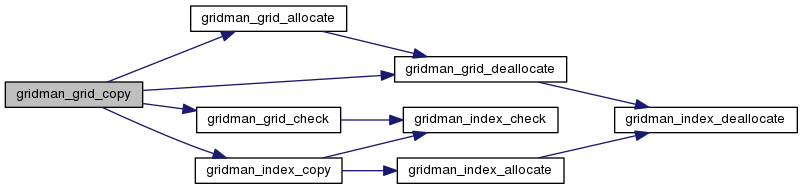

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_compare	(	type(gridman_grid)	GRID1,
		type(gridman_grid)	GRID2,
		integer, intent(out)	RES,
		integer, intent(out)	IERR
	)

Compare two grid objects.

• RES=0: two grids are equivalent
• RES=1: different grid types
• RES=2: different dimensions
• RES=3: different topology (CELLs)
• RES=4: different topology (POINTs)
• RES=5: different units
• RES=6: different coordinates
• RES=7: different description strings
• RES=8: different edge indices
• RES=9: different cell indices

Parameters

	grid1	First object to compare
	grid2	Second object to compare
[out]	res	Code of the result
[out]	ierr	Error code

Definition at line 1068 of file grid1.f.

References gridman::gridman_dp, gridman_grid_check(), gridman_index_compare(), gridman::gridman_sp, gridman::gridman_tol, and gridman::gridman_unit.

Here is the call graph for this function:

subroutine gridman_grid_take	(	type(gridman_grid)	GRID2,
		type(gridman_grid)	GRID1,
		integer, intent(out)	IERR
	)

Take data from one grid object to another.

Opposite to GRIDMAN_GRID_COPY, GRID2 is not overwritten and has to exist. Index tables of GRID2 are not modified

WARNING: indices are not taken

Parameters

grid2	Grid object to which the copy is taken
grid1	Original grid object

Definition at line 1283 of file grid1.f.

References gridman_grid_check(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid2d_triang().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_count	(	type(gridman_grid)	GRID,
		integer(gridman_sp), intent(out)	NCOUNT,
		integer, intent(out)	IERR
	)

Return the number of cells plus the number of edges not belonging to any cell.

Parameters

	grid	Grid object where cells and surfaces are counted
[out]	ncount	Returned number of cells and "free" edges
[out]	ierr	Error code

Definition at line 1360 of file grid1.f.

References gridman_grid_check(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_2dgrid2vtk_index(), and gridman_vtk_grid2d_write().

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_metadata_text	(	type(gridman_grid)	GRID,
		character(gridman_length), dimension(:), allocatable	TEXT,
		integer, intent(out)	NT,
		integer, intent(out)	IERR
	)

Print metadata into text array.

Called from the interface GRIDMAN_GRID_METADATA

Parameters

	grid	Grid whose metadata has to be printed
	text	Array of strings with printed metadata, TEXT(NT)
[out]	nt	Length of array TEXT
[out]	ierr	Error code

Definition at line 1407 of file grid1.f.

References gridman::gridman_length.

Referenced by gridman_grid_metadata_unit().

Here is the caller graph for this function:

subroutine gridman_grid_metadata_unit	(	type(gridman_grid)	GRID,
		integer, intent(in)	IUNIT,
		integer, intent(out)	IERR
	)

Print metadata into unit - shell for GRIDMAN_GRID_METADATA_TEXT.

Called from the interface GRIDMAN_GRID_METADATA

Parameters

	grid	Grid whose metadata has to be printed
[in]	iunit	Number of the output unit
[out]	ierr	Error code

Definition at line 1510 of file grid1.f.

References gridman_grid_metadata_text(), and gridman::gridman_length.

Here is the call graph for this function:
