addsurf.f File Reference

Converters of EIRENE Additional Surfaces into GRIDMAN_GRID object. More...

Go to the source code of this file.

Functions/Subroutines
subroutine	gridman_addsurf2grid_2d (GRID, NSURF, X, Y, ISRF, IERR)
	Convert planar EIRENE Additional Surfaces into grid object. More...
subroutine	gridman_addsurf2d_read_grid (GRID, FNAME, IERR)
	Read planar EIRENE Additional Surfaces and convert them into (2D) grid object. More...
subroutine	gridman_addsurf2grid_3d (GRID, NSURF, X, Y, Z, ISRF, IERR)
	Convert triangular elements (EIRENE additional surfaces) into (3D) grid object. More...
subroutine	gridman_addsurf3d_read_grid (GRID, FNAME, IERR)
	Read triangular EIRENE Additional Surfaces and convert them into (3D) grid object. More...

Detailed Description

Converters of EIRENE Additional Surfaces into GRIDMAN_GRID object.

Definition in file addsurf.f.

Function/Subroutine Documentation

subroutine gridman_addsurf2grid_2d	(	type(gridman_grid)	GRID,
		integer(gridman_sp), intent(in)	NSURF,
		real(gridman_dp), dimension(2,nsurf), intent(in)	X,
		real(gridman_dp), dimension(2,nsurf), intent(in)	Y,
		integer(gridman_sp), dimension(nsurf), intent(in)	ISRF,
		integer, intent(out)	IERR
	)

Convert planar EIRENE Additional Surfaces into grid object.

WARNING: grid object which already exists will be overwritten!

1st edge index GRIDEDGEINDEX(1) contains indices of Additional Surfaces from the EIRENE input file

Parameters

	grid	Resulting grid object
[in]	nsurf	Number of edges
[in]	x	X-coordinates of the edge vertices
[in]	y	Y-coordinates of the edge vertices
[in]	isrf	Indices of EIRENE additional surfaces
[out]	ierr	Error code

Definition at line 31 of file addsurf.f.

References gridman::gridman_dp, gridman_grid2d_check(), gridman_grid_allocate(), gridman_grid_deallocate(), gridman_index_allocate(), and gridman::gridman_sp.

Referenced by gridman_addsurf2d_read_grid().

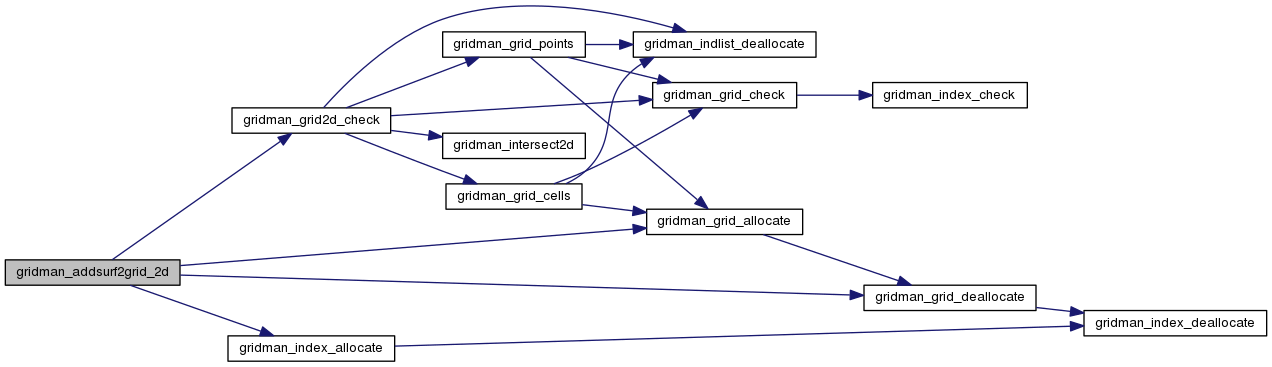

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_addsurf2d_read_grid	(	type(gridman_grid)	GRID,
		character(*), intent(in)	FNAME,
		integer, intent(out)	IERR
	)

Read planar EIRENE Additional Surfaces and convert them into (2D) grid object.

WARNING: grid object which already exists will be overwritten!

GRIDMAN_ADDSURF2D_READ_ARRAY and GRIDMAN_ADDSURF2D_READ_GRID are combined in the interface GRIDMAN_ADDSURF2D_READ

1st edge index GRIDEDGEINDEX(1) contains indices of Additional Surfaces from the EIRENE input file

Parameters

	grid	Resulting grid object
[in]	fname	String containing the name of input file
[out]	ierr	Error code

Definition at line 128 of file addsurf.f.

References gridman_addsurf2d_read_array(), gridman_addsurf2grid_2d(), gridman::gridman_dp, and gridman::gridman_sp.

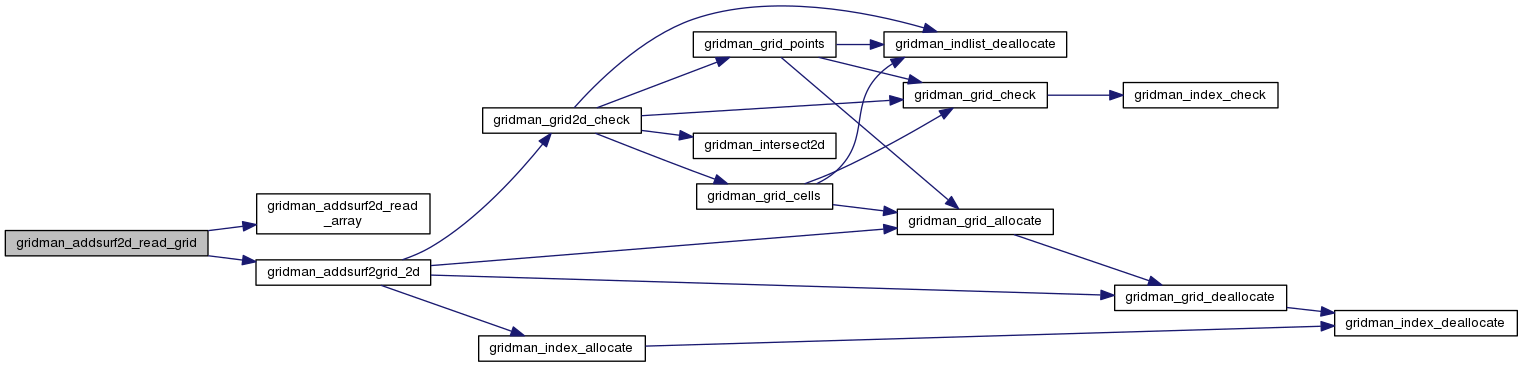

Here is the call graph for this function:

subroutine gridman_addsurf2grid_3d	(	type(gridman_grid)	GRID,
		integer(gridman_sp), intent(in)	NSURF,
		real(gridman_dp), dimension(3,nsurf), intent(in)	X,
		real(gridman_dp), dimension(3,nsurf), intent(in)	Y,
		real(gridman_dp), dimension(3,nsurf), intent(in)	Z,
		integer(gridman_sp), dimension(nsurf), intent(in)	ISRF,
		integer, intent(out)	IERR
	)

Convert triangular elements (EIRENE additional surfaces) into (3D) grid object.

WARNING: grid object which already exists will be overwritten!

1st edge index GRIDEDGEINDEX(1) contains indices of Additional Surfaces from the EIRENE input file

Parameters

	grid	Resulting grid object
[in]	nsurf	Number of edges
[in]	x	X-coordinates of the triangle vertices
[in]	y	Y-coordinates of the triangle vertices
[in]	z	Z-coordinates of the triangle vertices
[in]	isrf	Indices of EIRENE additional surfaces
[out]	ierr	Error code

Definition at line 181 of file addsurf.f.

References gridman::gridman_dp, gridman_grid_allocate(), gridman_grid_check(), gridman_grid_deallocate(), gridman_index_allocate(), and gridman::gridman_sp.

Referenced by gridman_addsurf3d_read_grid().

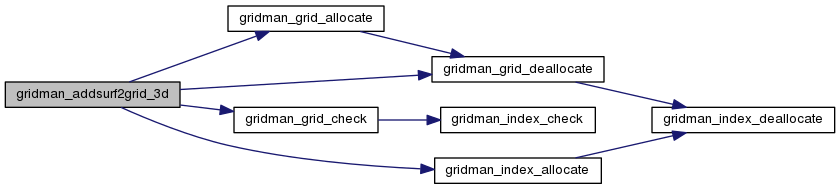

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_addsurf3d_read_grid	(	type(gridman_grid)	GRID,
		character(*), intent(in)	FNAME,
		integer, intent(out)	IERR
	)

Read triangular EIRENE Additional Surfaces and convert them into (3D) grid object.

WARNING: grid object which already exists will be overwritten!

GRIDMAN_ADDSURF3D_READ_ARRAY and GRIDMAN_ADDSURF3D_READ_GRID are combined in the interface GRIDMAN_ADDSURF3D_READ

1st edge index GRIDEDGEINDEX(1) contains indices of Additional Surfaces from the EIRENE input file

Parameters

	grid	Resulting grid object
[in]	fname	String containing the name of input file
[out]	ierr	Error code

Definition at line 284 of file addsurf.f.

References gridman_addsurf2grid_3d(), gridman_addsurf3d_read_array(), gridman::gridman_dp, and gridman::gridman_sp.

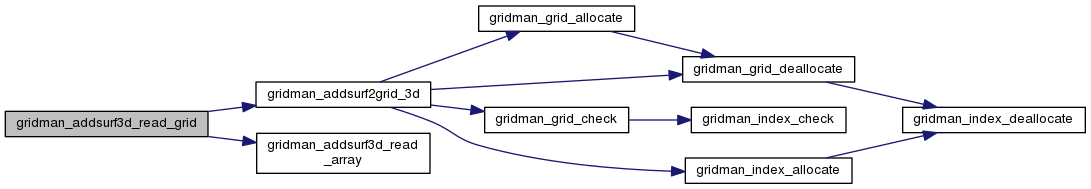

Here is the call graph for this function:
