grid2.f File Reference

Extra and advanced methods of the data-type GRIDMAN_GRID, see gridman.f. More...

Go to the source code of this file.

Functions/Subroutines
subroutine	gridman_grid_combine (GRID, GRID1, GRID2, IERR)
	Combine two grid objects into one. More...
subroutine	gridman_grid_cells (EDGES, GRID, IERR)
	Create a list of edges which belong to each cell. More...
subroutine	gridman_grid_points (EDGES, GRID, IERR)
	Create table of edges connected to each point. More...
subroutine	gridman_grid_eliminate_cells (GRID_NEW, GRID, LTAKE, IERR)
	Eliminate cells from GRIDMAN_GRID object. More...
subroutine	gridman_grid_eliminate_edges (GRID_NEW, GRID, LTAKE, IERR)
	Eliminate edges the GRIDMAN_GRID object. More...
subroutine	gridman_grid_remove_free_edges (GRID_NEW, GRID, IERR)
	Remove edges which do not belong to any cell from the GRIDMAN_GRID object. More...

Detailed Description

Extra and advanced methods of the data-type GRIDMAN_GRID, see gridman.f.

Definition in file grid2.f.

Function/Subroutine Documentation

subroutine gridman_grid_combine	(	type(gridman_grid)	GRID,
		type(gridman_grid)	GRID1,
		type(gridman_grid)	GRID2,
		integer, intent(out)	IERR
	)

Combine two grid objects into one.

WARNING: if GRID exists it will be overwritten

Units of GRID1 are used in combined grid

Parameters

	grid	Resulting combined grid
	grid1	First grid to be combined
	grid2	Second grid to be combined
[out]	ierr	Error code

Definition at line 31 of file grid2.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_grid_deallocate(), gridman_index_copy(), gridman::gridman_sp, and gridman::gridman_unit.

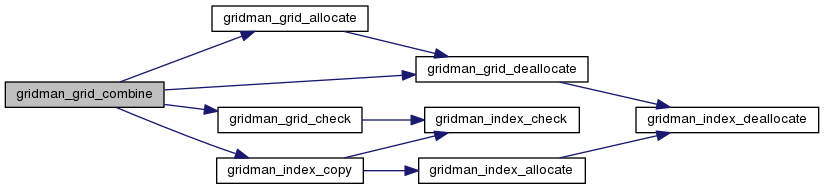

Here is the call graph for this function:

subroutine gridman_grid_cells	(	type(gridman_indlist)	EDGES,
		type(gridman_grid)	GRID,
		integer, intent(out)	IERR
	)

Create a list of edges which belong to each cell.

WARNING: array EDGES will be overwritten if already exists

Parameters

	edges	Resulting list of edges
	grid	Grid for which this list is generated
[out]	ierr	Error code

Definition at line 177 of file grid2.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_indlist_deallocate(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid2d_chains(), gridman_grid2d_check(), gridman_grid2d_polygon_trajectory(), gridman_grid2d_triang(), and gridman_grid2tria().

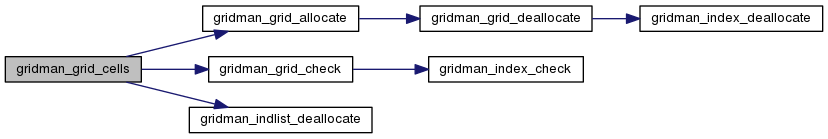

Here is the call graph for this function:

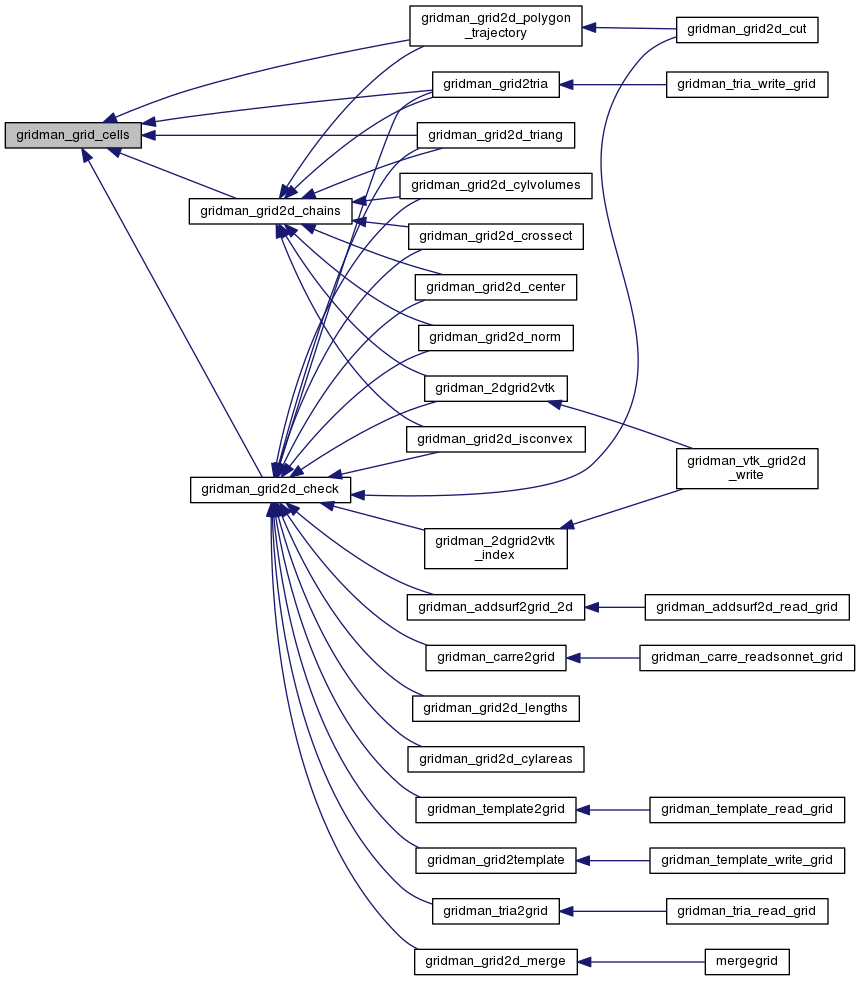

Here is the caller graph for this function:

subroutine gridman_grid_points	(	type(gridman_indlist)	EDGES,
		type(gridman_grid)	GRID,
		integer, intent(out)	IERR
	)

Create table of edges connected to each point.

WARNING: array EDGES will be overwritten if already exists

Parameters

	edges	Resulting list of edges
	grid	Grid for which this list is generated
[out]	ierr	Error code

Definition at line 361 of file grid2.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_indlist_deallocate(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid2d_chains(), and gridman_grid2d_check().

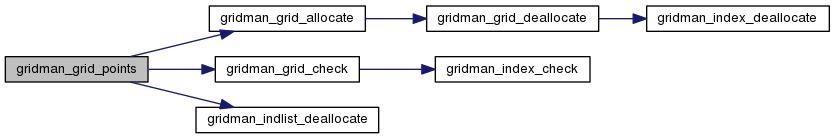

Here is the call graph for this function:

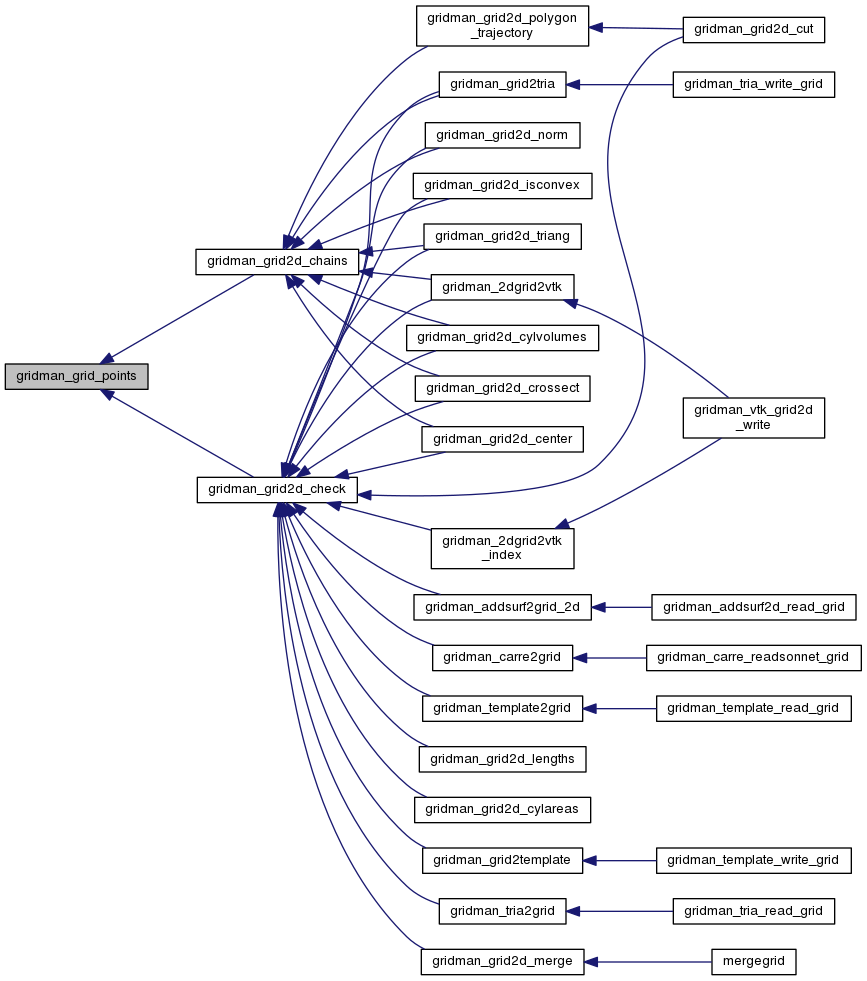

Here is the caller graph for this function:

subroutine gridman_grid_eliminate_cells	(	type(gridman_grid)	GRID_NEW,
		type(gridman_grid)	GRID,
		logical, dimension(grid%ncells), intent(in)	LTAKE,
		integer, intent(out)	IERR
	)

Eliminate cells from GRIDMAN_GRID object.

WARNING: object GRID_NEW will be overwritten if already exists

Parameters

	grid_new	Resulting grid with eliminated cells
	grid	Original grid
[in]	ltake	List of cells which have to be included/eliminated

If LTAKE(ICELL)=.TRUE. then ICELL is taken into GRID_NEW, otherwise ICELL is eliminated

Parameters

[out]

ierr

Error code

Definition at line 544 of file grid2.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_index_allocate(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_carre2grid().

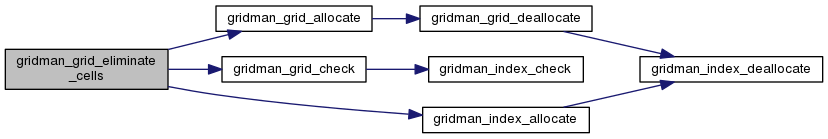

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_eliminate_edges	(	type(gridman_grid)	GRID_NEW,
		type(gridman_grid)	GRID,
		logical, dimension(grid%nedges), intent(in)	LTAKE,
		integer, intent(out)	IERR
	)

Eliminate edges the GRIDMAN_GRID object.

WARNING: object GRID will be overwritten if already exists

Parameters

	grid_new	Resulting grid with removed cells
	grid	Original grid
[in]	ltake	List of edges which have to be included/eliminated, LTAKE(GRIDNEDGES)

If LTAKE(IEDGE)=.TRUE., then IEDGE is taken into GRID_NEW, otherwise IEDGE is eliminated

Parameters

[out]

ierr

Error code

Definition at line 816 of file grid2.f.

References gridman_grid_allocate(), gridman_grid_check(), gridman_grid_deallocate(), gridman_index_allocate(), gridman_index_copy(), gridman_index_deallocate(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_grid_remove_free_edges().

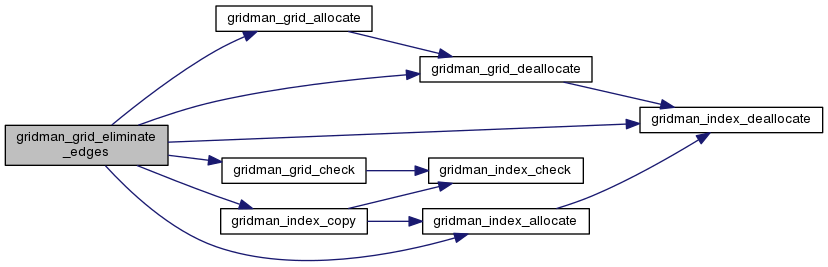

Here is the call graph for this function:

Here is the caller graph for this function:

subroutine gridman_grid_remove_free_edges	(	type(gridman_grid)	GRID_NEW,
		type(gridman_grid)	GRID,
		integer, intent(out)	IERR
	)

Remove edges which do not belong to any cell from the GRIDMAN_GRID object.

WARNING: object GRID will be overwritten if already exists

Parameters

	grid_new	Resulting grid with removed cells
	grid	Original grid
[out]	ierr	Error code

Definition at line 999 of file grid2.f.

References gridman::gridman_dbg, gridman_grid_eliminate_edges(), gridman::gridman_sp, and gridman::gridman_unit.

Referenced by gridman_carre2grid().

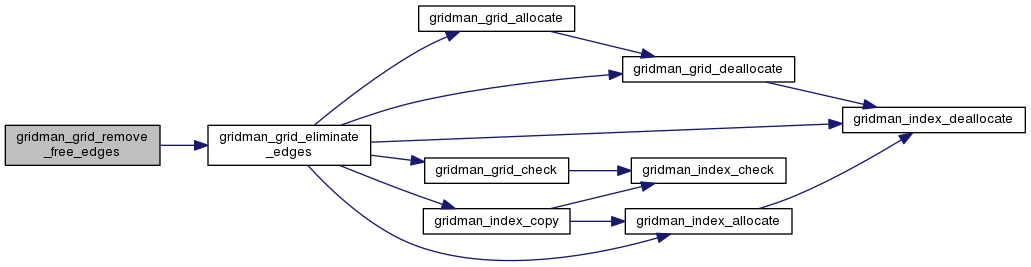

Here is the call graph for this function:

Here is the caller graph for this function:
