GRIDMAN
grid managment library
|
Converter for B2 (CARRE, SONNET) grid into GRIDMAN_GRID object. More...
Go to the source code of this file.
Functions/Subroutines | |
| subroutine | gridman_carre2grid (GRID, LXB, LYB, NXB, NYB, NNCUT, NXCUT, NYCUT, NNISO, NXISO, NYISO, BR, BZ, LX, LY, NXL, NYL, IERR, LEIR) |
| Convert B2 (CARRE, SONNET) grid into GRIDMAN_GRID grid object. More... | |
| subroutine | gridman_carre_read30_grid (GRID, FNAME, IERR, LEIR) |
| Read B2 (CARRE, SONNET) grid from fort.30, return GRID object. More... | |
| subroutine | gridman_carre_readsonnet_grid (GRID, FNAME, IERR, LEIR) |
| Read CARRE grid in SONNET format, return GRID object. More... | |
Converter for B2 (CARRE, SONNET) grid into GRIDMAN_GRID object.
Definition in file carre.f.
| subroutine gridman_carre2grid | ( | type(gridman_grid) | GRID, |
| integer(gridman_sp), intent(in) | LXB, | ||
| integer(gridman_sp), intent(in) | LYB, | ||
| integer(gridman_sp), intent(in) | NXB, | ||
| integer(gridman_sp), intent(in) | NYB, | ||
| integer(gridman_sp), intent(in) | NNCUT, | ||
| integer(gridman_sp), dimension(nncut), intent(in) | NXCUT, | ||
| integer(gridman_sp), dimension(nncut), intent(in) | NYCUT, | ||
| integer(gridman_sp), intent(in) | NNISO, | ||
| integer(gridman_sp), dimension(nniso), intent(in) | NXISO, | ||
| integer(gridman_sp), dimension(nniso), intent(in) | NYISO, | ||
| real(gridman_dp), dimension(lxb:nxb,lyb:nyb,4) | BR, | ||
| real(gridman_dp), dimension(lxb:nxb,lyb:nyb,4) | BZ, | ||
| integer(gridman_sp), intent(in) | LX, | ||
| integer(gridman_sp), intent(in) | LY, | ||
| integer(gridman_sp), intent(in) | NXL, | ||
| integer(gridman_sp), intent(in) | NYL, | ||
| integer, intent(out) | IERR, | ||
| logical, optional | LEIR | ||
| ) |
Convert B2 (CARRE, SONNET) grid into GRIDMAN_GRID grid object.
WARNING: the object GRID will be overwritten if already exists!
3rd index in BR, BZ is the index of corner
Y 3-----2 | | | | | | | 4-----1 ------------ X
This numbering of corners is used BR, BZ arrays produced by GRIDMAN_CARRE_READ30, GRIDMAN_CARRE_READSONNET
Arrays NXCUT,NYCUT,NXISO,NYISO describe cuts an isolated cells as returned by subroutine GRIDMAN_CARRE_READSONNET. In order to use the output of GRIDMAN_CARRE_READ30 this subroutine has one more entry:
GRIDMAN_CARRE2GRID_FORT30(GRID,LX,LY,NXL,NYL,NNCUT,
NXCUT30,NYCUT30,
NNISO,NXISO30,NYISO30,BR,BZ,IERR)
In the resulting grid one cell index, and 3 edge indexes. Cell index show IX,IY indexes of the correcponding cell on the plasma (B2) grid. 1st edge index contains markers of the grid boundaries: -1 stands for South, -4 for North, -2 for West, -3 for East 2nd edge index is the indices of the poloidal edges:
_________________ | | | o IX,IY iedge -> IX,IY |_________________|
3rd edge index is the indices of the radial edges:
__iedge -> IX,IY _ | | | o IX,IY | |__________________|
| grid | Resulting 2D grid object | |
| [in] | lxb | First index in arrays BR, BZ for X-direction |
| [in] | lyb | First index in arrays BR, BZ for Y-direction |
| [in] | nxb | Last index in arrays BR, BZ for X-direction |
| [in] | nyb | Last index in arrays BR, BZ for Y-direction |
| [in] | nncut | Number of cuts |
| [in] | nniso | Number of isolated surfaces |
| [in] | nxcut | X-indices of cuts (in GRIDMAN_CARRE_READSONNET format) |
| [in] | nycut | Y-indices of cuts (in GRIDMAN_CARRE_READSONNET format) |
| [in] | nxiso | X-indices of isolated cells (in GRIDMAN_CARRE_READSONNET format) |
| [in] | nyiso | Y-indices of isolated cells (in GRIDMAN_CARRE_READSONNET format) |
| br | Major radius (R) of four corners of each cell, BR(LXB:NXB,LYB:NYB,4) | |
| bz | Vertical coordinate (Z) of four corners of each cell, BZ(LXB:NXB,LYB:NYB,4) | |
| [in] | lx | 1st index to be taken in arrays BR, BZ for X-direction |
| [in] | ly | 1st index to be taken in arrays BR, BZ for Y-direction |
| [in] | nxl | Last index to be taken in arrays BR, BZ for X-direction |
| [in] | nyl | Last index to be taken in arrays BR, BZ for Y-direction |
| [out] | ierr | Error code |
| leir | Switch to produce cell index mapping in the sense of EIRENE |
If .TRUE. then inices in the index mapping of cells are shifted in the presence if cuts in the way it is done in EIRENE
Definition at line 72 of file carre.f.

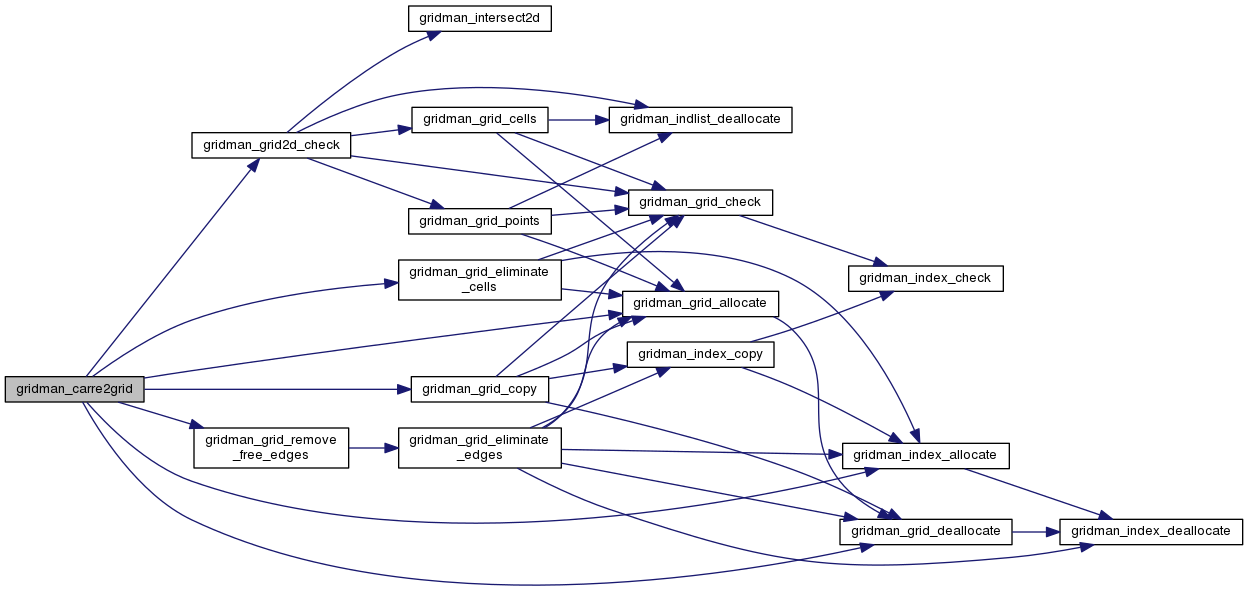

References gridman::gridman_dp, gridman_grid2d_check(), gridman_grid_allocate(), gridman_grid_copy(), gridman_grid_deallocate(), gridman_grid_eliminate_cells(), gridman_grid_remove_free_edges(), gridman_index_allocate(), gridman::gridman_sp, and gridman::gridman_tol.
Referenced by gridman_carre_readsonnet_grid().
| subroutine gridman_carre_read30_grid | ( | type(gridman_grid) | GRID, |
| character(*), intent(in) | FNAME, | ||
| integer, intent(out) | IERR, | ||
| logical, optional | LEIR | ||
| ) |
Read B2 (CARRE, SONNET) grid from fort.30, return GRID object.
GRIDMAN_CARRE_READ30_GRID is a shell for GRIDMAN_CARRE_READ30_ARRAY
GRIDMAN_CARRE_READ30_ARRAY and GRIDMAN_CARRE_READ30_GRID are combined in the interface GRIDMAN_CARRE_READ30
| grid | Resulting grid object | |
| [in] | fname | String containing the name of input file |
| [out] | ierr | Error code |
| leir | Switch to produce cell indexes (of the original plasma grid) in the sense of EIRENE |
If .TRUE. then inices in the index mapping of cells are shifted in the presence if cuts in the way it is done in EIRENE
Definition at line 853 of file carre.f.

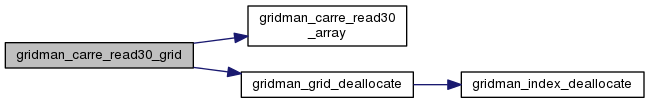

References gridman_carre_read30_array(), gridman::gridman_dp, gridman_grid_deallocate(), and gridman::gridman_sp.
| subroutine gridman_carre_readsonnet_grid | ( | type(gridman_grid) | GRID, |
| character(*), intent(in) | FNAME, | ||
| integer, intent(out) | IERR, | ||
| logical, optional | LEIR | ||
| ) |
Read CARRE grid in SONNET format, return GRID object.
GRIDMAN_CARRE_READSONNET_ARRAY and GRIDMAN_CARRE_READSONNET_GRID are combined in the interface GRIDMAN_CARRE_READSONNET
| grid | Resulting grid object | |
| [in] | fname | String containing the name of input file |
| [out] | ierr | Error code |
| leir | Switch to produce cell index mapping in the sense of EIRENE |
If .TRUE. then inices in the index mapping of cells are shifted in the presence if cuts in the way it is done in EIRENE
Definition at line 927 of file carre.f.

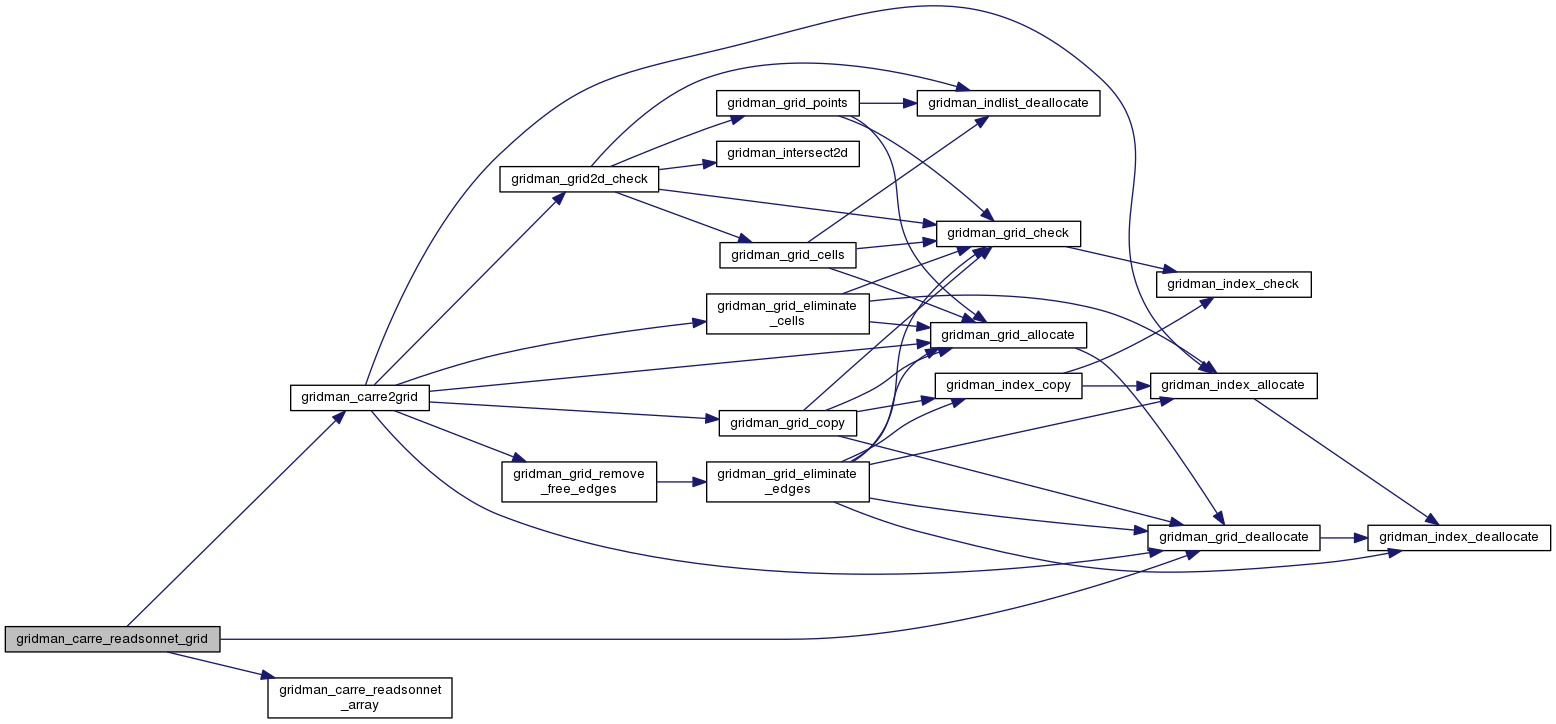

References gridman_carre2grid(), gridman_carre_readsonnet_array(), gridman::gridman_dp, gridman_grid_deallocate(), and gridman::gridman_sp.
